Journey Into Incident Response

The Linkz for various tools have been piling up in the hopper. For some too much time has passed and others have already done an adequate job talking about them. In this long overdue Linkz post I’m trying to touch on a few links and tools people may not be too familiar with. Just read the headings to get a feel for if any of the linkz apply to the work you do.

Custom Googles

Google has been one of my most reliable tools over the years. The answer to any question is only a few keyboard clicks away. Google is even better with the ability to create a custom Google that only searches specific sites. It seems as if these custom Googles have been my go to tool lately; so much so that I want to share them with others.

If you need to find anything related to digital forensics and incident response then the Digital Forensic Search is the one you will want. If you need to research a piece of malware then check out the Malware Analysis Search. Mila over at Contagio Malware Dump put together a nice post containing links to custom Googles. One of the links was for Malware Sample Search which is handy for the times you are looking for a specific piece of malware. If you need to research a vulnerability or exploit then the Vulnerability Search should be one of your first stops.

Links to Useful Public Resources

I picked up on this site some time ago. The Roberto Perdisci website has a page outlining useful public resources. The links cover: networking and network security, network traffic datasets, malware collection and analysis, pen testing / exploits/ forensics, machine learning, and program analysis. The page has a ton of gems listed so it’s worth taking some time to go through them.

I sent a few links out to Twitter in response to a question and they pertain to useful public resources. The public resources are malware repositories and these links outline the various repositories available. The first link is Lenny Zeltser's Malware Sample Sources for Researchers while the second is Mila's Links and resources for malware samples.

Malware Downloaders and Scappers

These next round of links are all on my list to test; they all look outstanding and should be a nice addition to my tool kit.

At times there is a need to download malware from a website, or two, or 50. In these situations trying to do this manually might not be the best option. This is where the next few links come into play. The first tool has been around for some time but it’s new to me. XyliBox posted his Malware Auto-downloader v1.7 a few years back. The next malware downloader looks like an outstanding tool to continuous download malware from known malicious websites. Kyle Maxwell occasionally tweeted about a project he was working on so when he released it I was really looking forward to reading about it. He extended the mwcrawler (another downloader) into a tool he refers to as Maltrieve. To fully see what he did check out his post Maltrieve: retrieving malware for research and grab the tool from Maltrieve on Github.

The last link is for a malware scrapper. Jamie Levy released her getmalwaredomains Python script. It seems like a nifty little script since it “collects domain/IP/Date/Reverse Lookup information from malwaredomainlist.com”.

IDX Information and Parsers

Java exploits have been a topic I frequently discussed. Not only because it seems like every few months there is a new zero-day but because I keep encountering it on my examinations such as in the post Finding the Initial Infection Vector. One artifact from Java exploits and Java malware occurs when they get downloaded into the Java cache. An index file (IDX) is created and it contains a wealth of information. I briefly touched on IDX files in the post (Almost) Cooked Up Some Java. The little research I did does not even compare to what others have done. First Brian Baskin released his Java Cache IDX Parser. Then Harlan did a few blog posts about IDX files (one of them was Bin Mode: Parsing Java *idx files). In one of Harlan’s posts he pointed out that Joachim Metz was sharing information about the IDX file format on the ForensicsWiki Java page. Mark Woan released his Java IDX Format Specification document where he breaks down the file format for different IDX file versions in addition to his JavaIDX parser. Rounding out the IDX parsers Harlan released his IDXparse script. Java exploits and Java malware are only going to get worse so if you aren’t familiar with IDX files then it might be time to get acquainted.

Memory Forensics

Last Fall there was a new memory imager on the block called pmem. The Scudette in Wonderland blog did a nice write-up about pmem in the post The PMEM Memory acquisition suite. The pmem tool itself can be downloaded from the Volatility Google page. Speaking about Volatility. I am truly impressed with the amount of documentation they have in their Wiki. If you use Volatility or want to learn about the tool then you should definitely check out their Wiki. For example, check out the Volatility 2.2 Release Notes page and then check out their command reference for the: Windows Core, Windows GUI, Windows Malware, and Windows registry. Finally, browse through the rest of the Wiki because I only mentioned some of it. Again, really impressive.

NirLauncher

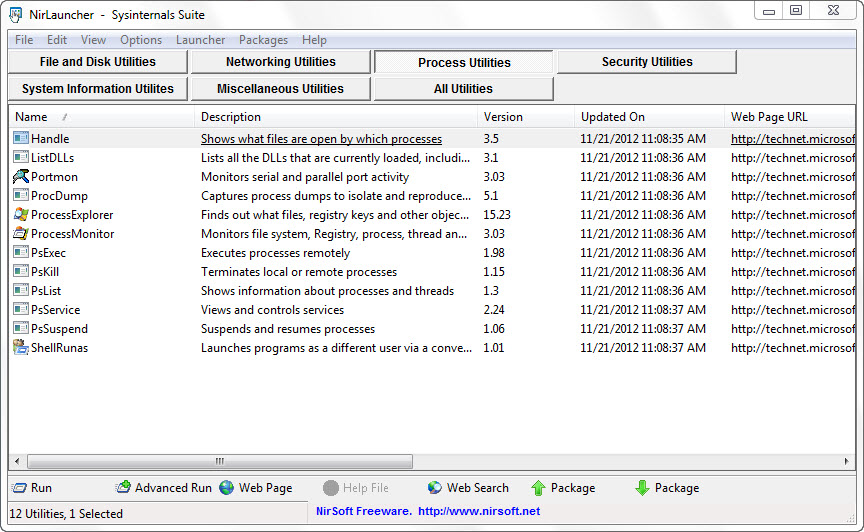

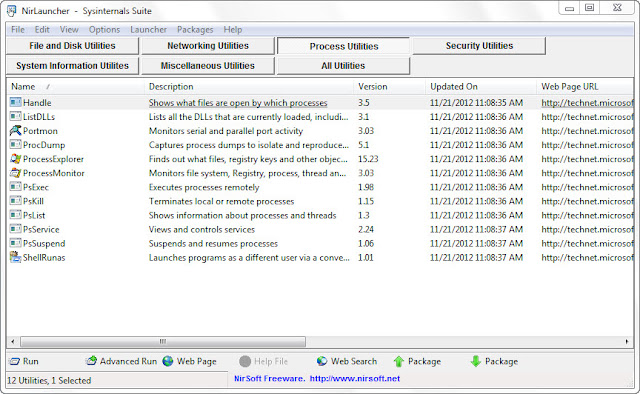

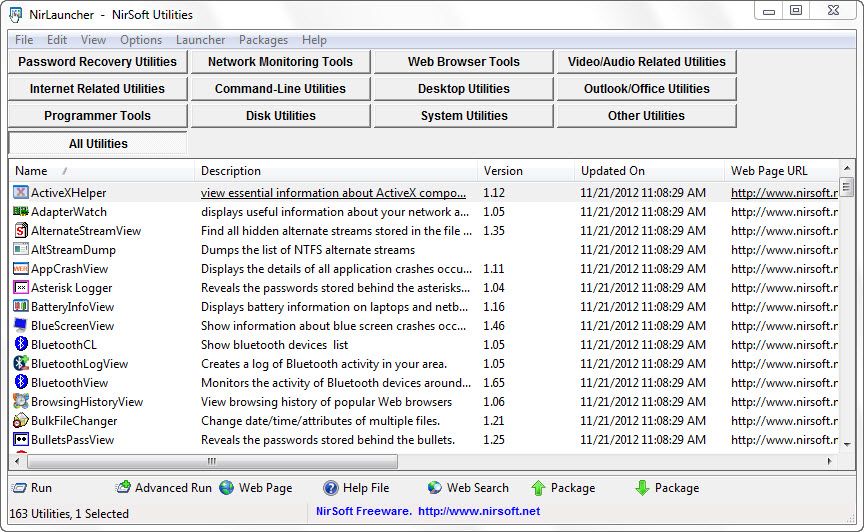

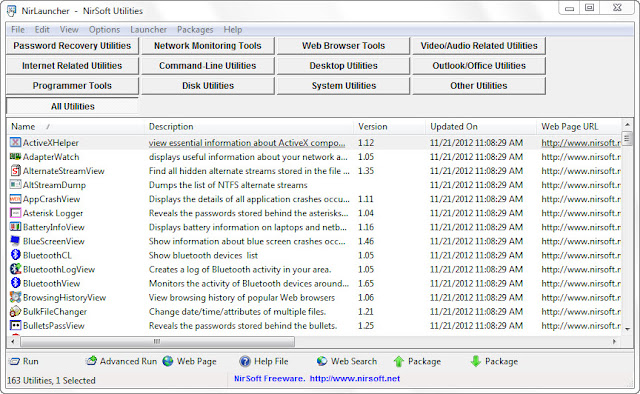

This nice tool is pretty slick. I use the tools from Nirsoft and Sysinternals for different purposes. I like the tools so it didn't bother me too much having to launch multiple stand-alone executables. I'm not sure how I missed this but one I'm glad the NWC3 training I sat through last fall opened my eyes. Nirsoft has a tool called Nirlauncher. Nirlauncher is a single interface that can be used to run "more than 150 portable freeware utilities". Check out the screenshot below:


It gets even better. There is a package for the Sysinternals tools as well.


Like I said, pretty slick. Nirlauncher can be downloaded from here and the Sysinternals tools can be grabbed from here.

PE Executables

Again these next two links are on my list to test. First up HiddenIllusion released his tool AnalyzePE. In his own words it " wraps around various tools and provides some additional checks/information to produce a centralized report of a PE file". It seems like the tool is a good way to automate some PE analysis tasks. The last link is for the tool PE_Carver which " carves EXEs from given data files, using intelligent carving based upon PE headers". This might be a handy little utility and save time from having to manually carve out PE files with a hex editor.

Layering is defined as the action of arranging something into layers. There are various reasons to why data is layered but I think the most important one is to show a more accurate picture about something. Each layer may contain different information so when the layers are combined all of the information can be seen. Providing a more accurate picture about something even applies in Digital Forensics and Incident Response (DFIR). I saw its benefits when layering different artifacts showing similar information such as the installed software artifacts. A single artifact may not show all of the software that is or was installed but looking at the information from all artifacts provide a more accurate picture of what programs were on a computer. I have found layering data to be a powerful technique; from what programs executed to what files were accessed to what activity occurred on a system. I hope to demonstrate the benefits to layering data through the eye of a timeline.

Layering Data in Action

Before diving into timelines I wanted to take a step back to first illustrate layering data. The best visual example of how layering data provides a more accurate picture of something is the way mapping software works. All layers contain information about the same geographical location but the data each layer contains is different.

I wanted to use an example closer to home to show the additional information layering data in maps provides. When my wife and I were looking for a house to buy one of the things we took into consideration was the crime rate in the neighborhood. We didn’t want to end up in a rough neighborhood so we wanted additional information about the neighborhoods we were looking at. Unfortunately, there are no online crime maps where I live so I had to settle for the City of Spokane, Washington Crime Map I found with a Google search. Let’s say my wife and I were looking at a loft in downtown Spokane located in the red box on the map.


Using the crime map I first wanted to know what burglaries occurred over the past month.


So far so good; there were a few burglaries that occurred but none were inside the red box. A month doesn’t provide an accurate picture; let’s see the statistics for the past year.


Adding this additional layer provides more information about the burglaries in the area. Like most people, we are more worried about all crime as opposed to just one type of crime. Adding the all crime layer to the map provides even more information.


The new layer provides more information about the crime in the downtown area but adding another layer will provide more even more context. I added the heat map layer as shown below.


The heat map layer now shows an accurate picture about the crime rate around downtown Spokane where our imaginary loft is located. The loft is located in the area that has the highest concentration of crime. By layering data on top of the geographic location we were interested in would enable us to make a more informed decision about if we would actually want to live there. Please note: I only used Spokane since it was the first crime map I saw on a Google search. I have no knowledge about the downtown area and it might be a great place to live.

Layering Data in Timelines

System timelines are a great way to illustrate layering data in DFIR. Artifacts can be organized into layers and then applied to a timeline as a group. The easiest way to see this is by looking at the examination process I use. Below are a few of my examination steps:

        - Examine the programs ran on the system
        - Examine the auto-start locations
        - Examine the host-based logs
        - Examine file system artifacts

I tend to group artifacts together underneath the examination step they pertain to. In other words, I organize all artifacts based on categories that match my examination step. For example, the files listed underneath the examine file system artifacts step include: $MFT, $LogFile, $UsnJrnl, and $INDX files. When I want to know something about the file system then I will examine all of these artifacts. I discussed this examination approach before when I wrote about how to obtain information about the operating system (side note: I updated the script and it automates my entire registry examination process). Harlan shared his thoughts about the usefulness of categorizing artifacts in his post There Are Four Lights: The Analysis Matrix. SANs released their DFIR poster which organizes artifacts based on categories. In my opionion this is the best technqiue when approahing an examination and to deomonstrate it I’ll use the image from the post Extracting ZeroAccess from NTFS Extended Attributes.

In the post I mentioned how ZeroAccess modified the services.exe file so it loads the Trojan from the NTFS Extended Attributes. I parsed the $MFT with AnalyzeMFT. The services.exe file was timestomped using file system tunneling; I focused on the timestamp for the last MFT update which was 12/06/2012 22:18:06.


The $MFT by itself provides a wealth of information but it doesn’t provide any historical information. This is where layering data comes into play and the other NTFS artifacts. I parsed the $LogFile with David Cowen’s Advanced NTFS Journal Parser public version and added it to the timeline (check out his other post Happy new year, new post The NTFS Forensic Triforce to see how the NTFS artifacts tie together).


The $Logfile provided a little more context about the time when the services.exe $MFT record was last updated. The rows in blue shows a file was renamed followed by services.exe being created. Let’s continue layering data by adding the information stored in the $UsnJrnl file. I parsed the file with Tzwork’s Windows Journal Parser and added it to the timeline.


The $UsnJrnl also shows the services.exe file was renamed before it was created as well as other changes made to the file’s attributes.

Summary

The timeline only contained one layer of artifacts which were the NTFS artifacts. Combining the information stored in the $MFT, $LogFile, and $UsnJrnl provided more context about the services.exe file and how it came to be. Even more information could be obtained by adding more layers to the timeline such as program execution and logging information. Layering data in DFIR should not be limited to timelines. Every artifact can be organized into categories and the categories themselves can be treated as layers of information.

The NTFS change journal ($UsnJrnl) is not a new artifact and has been discussed before by others. The file's importance may have been overlooked since it wasn’t available in Windows XP by default. As more and more systems running newer Windows operating systems cross our desks it is crucial to know about the $UsnJrnl file. This is because starting with Windows Vista and continuing into Windows 7 the operating systems use the change journal. The $UsnJrnl file contains a wealth of information about file system activity which can provide more context about what occurred on a system. The information can even counter anti-forensics techniques leveraged by malware to subvert post-mortem examinations. Read on to get reacquainted with this NTFS artifact.

What is the $UsnJrnl File?

According to the book File System Forensic Analysis, the change journal “is a file that records when changes are made to files and directories”. The change journal is located at $Extend\$UsnJrnl and the actual journal entries are stored in the $UsnJrnl:$J alternate data stream. The Windows Internals Part 2: Covering Windows Server 2008 R2 and Windows 7 book details the information contained in each entry:

     - Time of change
     - Reason for the change
     - File/directory’s name
     - File/directory’s attributes
     - File/directory’s MFT record number
     - File record number of the file’s parent directory
     - Security ID
     - Update Sequence Number of the record
     - Information about the source of the change

Others have already highlighted the $UsnJrnl file’s forensic significance. One of which was Bugbear over at the Security Braindump. In his post Dear Diary: AntiMalwareLab.exe File_Created he not only goes into detail about the $UsnJrnl file structure but he even shared how the artifact was beneficial on a case. The change journal’s significance is not limited to malware type cases; it’s relevant to any type of case where it is important to know what changes occurred to the NTFS file system. Case in point, on a fraud case the $UsnJrnl file showed how a user performed a mass deletion of financial files.

Malware Anti-Forensic Techniques

There are various definitions explaining what anti-forensics is. The one I tend to prefer is Marcus Rogers where he stated anti-forensics are “attempts to negatively effect the existence, amount and/or quality of evidence from a crime scene, or make the analysis and examination of evidence difficult or impossible to conduct”. The Rootkit Arsenal 2nd Edition goes on to explain that the goal of anti-forensics is to “minimize the quantity of useful trace evidence that’s generated in addition to ensuring that the quality of this information is also limited (as far as a forensic investigation is concerned).” Malware can leverage anti-forensics to undermine examinations conducted post mortem and live as well as against the malware itself. As it relates to post mortem examinations, two anti-forensic strategies are data hiding and data destruction; both of which can be countered using the information in the $UsnJrnl file.

Data Hiding in Obscure Location

As the name implies, data hiding is a technique to store data where it is unlikely to be found. Remember the Rootkit Paradox and the first part of the predicament; they want to remain hidden. One area malware tries to hide is in obscure locations on the system with hopes that people won’t notice it.

Some ZeroAccess Trojan variants (i.e. MD5 3dbb09aa9b6eff5a180b3412b54e9862) use the recycle bin as a hiding location. The best way to illustrate this is to use a hypothetical scenario where an IDS alert provided the lead to use when examining the $UsnJrnl:$J file. Hypothetically, let’s say an IDS alert went off around 12/14/2012 15:38 UTC for Zeroaccess Outbound UDP traffic. The $J file was parsed with TZwork’s Windows Journal Parser (command used was: jp64.exe –file $J) and the output showed the following at the time of interest:


The output shows at 15:38:30 the following items were created: $5da39e9580074308c6cfbcce61795d0d, L, U, @, and n. The $J file entries only contain file/directory names but the MFT entry can be used to obtain the full file path. The first item of interest is $5da39e9580074308c6cfbcce61795d0d and its MFT entry is 0x00000000a477 (converted to decimal the value is 42103). Locating the MFT record 42103 in the parsed $MFT showed the following:


The item’s full path was /$Recycle.Bin/S-1-5-21-2793522790-2301028668-542554750-1000/$5da39e9580074308c6cfbcce61795d0d. Correlating the MFT entries listed in the $J file for the L, U, and @ files shows they were located inside the $5da39e9580074308c6cfbcce61795d0d directory. The information in the $J file was able to reveal the hiding spot used by this ZeroAccess variant.

Data Destruction

Data destruction is a technique where data is deleted to limit the amount of forensic evidence left on a system. The technique makes it more challenging to determine what happened. Two data destruction techniques to thwart post-mortem forensics are self deleting droppers/downloaders and overwriting file system metadata.

Self Deleting Droppers/Downloaders

A dropper is a type of program when executed will install malicious components. Typically, the malicious components are embedded within the dropper itself. A downloader on the other hand is a program when executed will download and install malicious components. One anti-forensic technique leveraged by droppers and downloaders is to delete the initial executable after its done its job. By deleting the executable it removes evidence about the initial infection vector. One issue faced with self deletion is that Windows does not allow for a process to delete itself. To get around this issue malware can use a self dissolving batch script or another type of shell script. Basically, the malicious process will spawn a new shell process (such as the command prompt) and the shell process will perform the deletion. The ZeroAccess Trojan MD5 3dbb09aa9b6eff5a180b3412b54e9862 is a self deleting dropper and the image below is the portion of the $J file where the Trojan (9862.exe) was deleted.

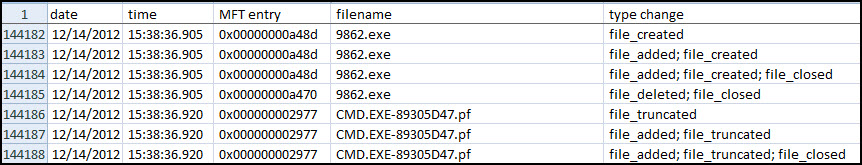

The change journal logged the 9862.exe file being deleted followed by the cmd.exe prefetch file being modified. The most interesting thing is over time the MFT record for the 9862.exe file will be reused and the cmd.exe prefetch file will change; both of which may limit the ability to determine the 9862.exe file was self deleting. However, the change journal may still maintain entries showing what occurred on the system when other artifacts no longer do.

Overwriting File System Metadata

The timestamps stored in the NTFS metadata are crucial when trying to determine what happened on a system. The metadata includes timestamps which are used to construct a timeline of activity showing how the events unfolded that resulted in a compromise. One anti-forensic technique leveraged by malware is to overwrite the timestamps making it harder to build a timeline. The ZeroAccess Trojan MD5 b437274492e215c25f96711d04b44050 uses two different methods to over write timestamps.

The $MFT maintains two sets of timestamps for files and directories; the Standard Information (SIA) and Filename Attribute (FNA). Most times when timestamps are overwritten it only impacts the SIA timestamps leaving the FNA timestamps intact. Comparing the FNA timestamps to the SIA timestamps is an effective way to determine if timestamps have been altered. To illustrate the following are the timestamps from the file /Users/lab/AppData/Local/{5da39e95-8007-4308-c6cf-bcce61795d0d}/n

Standard Information Attribute

Creation:       7/13/2009 23:11:59 UTC
Access:         7/13/2009 23:11:59 UTC
Modification:  7/14/2009 1:17:52 UTC


Filename Attribute

Creation:       12/6/2012 22:18:00 UTC
Access:         12/6/2012 22:18:00 UTC
Modification:  12/6/2012 22:18:00 UTC

The n file’s timestamps have been altered making it appear as if the file was created and last modified back in 2009. The $J file provides another method to determine if a file’s timestamps were altered since it records when items are created. The image below shows the $J file entry when the n file was created.


As can be seen, the entry reveals the n file was created on 12/6/2012 at 22:18:00 UTC as opposed to 7/13/2009 23:11:59 UTC which was reflected in the SIA timestamp . To detect timestamp manipulation the file/directory’s creation date can be compared to its record in the $J file.

     File System Tunneling

When I was looking at the artifacts associated with the ZeroAccess Trojan levering the NTFS Extended Attributes I quickly noticed how the malware altered its files’ timestamps. I even found the activity in the $J file showing the services.exe file being modified. However, the activity didn’t become clear until I shared the $MFT file with Harlan. Harlan was parsing the $MFT file when he noticed the Trojan used file system tunneling to alter the services.exe timestamps. Jason Hale over at The Digital Forensics Stream post File System Tunneling in Windows does an outstanding job demonstrating how file system tunneling works. Microsoft’s explanation about file system tunneling in Windows is to:

“enable compatibility with programs that rely on file systems being able to hold onto file meta-info for a short period of time. This occurs after deletion or renaming and re-introducing a new directory entry with that meta-info (if a create or rename occurs to cause a file of that name to appear again in a short period of time).”

File system tunneling means if a file is renamed or deleted and then if a file with the same name is created in the same directory then the new file will retain the timestamps from the old file. The $UsnJrnl file contains entries showing file system tunneling was used and this is what became clear after Harlan told me what he saw.


The entries show that the original services.exe file was renamed and within a fraction of a second a new services.exe file was created in the same directory. As shown below the new services.exe file retained the timestamps from the original:

Standard Information Attribute

Creation:       7/13/2009 23:11:26 UTC
Access:         7/13/2009 23:11:26 UTC
Modification:  7/14/2009 1:14:36 UTC


Filename Attribute

Creation:       7/13/2009 23:11:26 UTC
Access:         12/6/2012 22:18:06 UTC
Modification:  12/6/2012 22:18:06 UTC

Both the SIA and FNA timestamps indicate the services.exe file was created back in 2009 but the entries in the $J file shows otherwise. The services.exe was actually created on 12/6/2012 and file system tunneling was used to alter its timestamps.

Summary

The $UsnJrnl file contains a wealth of information about file system activity and its worthy for us to re-introduce ourselves to this artifact. This re-introduction shouldn’t be viewed in the same light as when Jay Z reintroduced himself. Jay Z was saying he was the top MC when he said “allow me to re-introduce myself. My name is Hov’, OH, H to the OV”. The $UsnJrnl is only one of the available NTFS artifacts; it’s not even the only artifact that logs file system activity. The $Logfile is another NTFS artifact with entries recording activity. David Cowen has been releasing information about the $Logfile and the program he wrote to parse it. A few posts include: Updates and DFIR Conferences discussing what the NTFS $Log Parser is and PFIC 2012 Slides & Bsides DFW containing a link to his slide deck where he breaks down the $Logfile. I highly recommend reading what David posted if you haven’t already. The $Logfile is another artifact that contains a wealth of information. The limited testing I did showed it contains information which wasn’t present in the $MFT and $UsnJrnl files. And vice versa about the $UsnJrnl compared to the $Logfile and $MFT. To get an accurate picture about file system activity then all the artifacts ($MFT, $Logfile, and $UsnJrnl) should be examined. Combining the information inside each artifact will counter anti-forensics techniques leveraged by malware to thwart post-mortem examinations.

I normally wait until my blog’s anniversary to post about the direction I want to take in the upcoming year. However, there has been a perfect storm brewing over at jIIr and the eye of the storm would have passed if I waited until my anniversary. As the New Year approaches I’m looking ahead to see the direction this blog will take. jIIr has always been a platform for me to share my thoughts and research, and this will not change. In the upcoming year I foresee some changes to the content I post due to the perfect storm that is occurring. The storm I keep referring to is the convergence of different areas in my life revolving around malware. In the upcoming year I’ll be involved in: authoring a Malware Forensic book, developing a Malware Analysis course, and taking on additional malware responsibilities with my employer.

People and organizations from all walks of life are combating malware on a daily basis. The majority of the security defensive controls are ineffective at stopping the malware since attackers are bypassing them with ease. Throwing additional security controls at the issue is not the answer. What needs to be improved is the response to the malware issue; where the systems impacted are actually examined. Examining systems is one way to obtain intelligence that could be used to improve security. The question then becomes what resources are available to those wanting to take the step to start examining malware infected systems. Do those resources outline not only the process to follow but the tools to use, artifacts to look for, artifacts meaning, and provide sample data to practice on. Well, I have not been able to locate a resource to my liking addressing malware examinations. So I decided to create one and what I just describe is a glimpse of the book I’m starting at some point next year.

My book is on hold because my current focus is on another endeavor. I am developing the Malware Analysis course for Champlain College’s Master of Science in Digital Forensic Science program. The course will cover a range of topics from malware fundamentals to memory forensics to malware forensics to malware analysis (reversing). It is an honor to be a part of Champlain College and I’m looking forward to do everything I can to put together a great course for an outstanding program.

Lastly, I am starting to take on additional malware responsibilities with my employer. jIIr has always been a personal blog and I never discuss the work I do for my employer. I will continue to have this boundary so I won’t elaborate on what my responsibilities are besides hinting at the fact malware will take up more of my time at my job.

This malware convergence means I will be living and breathing malware everyday and all day for the upcoming year. The little personal time I may have for research is going to be spent on different aspects of the malware issue. As a result, jIIr is going to be more focused on topics related to malware. I will try my best to mix in other content about DFIR or security but to be honest I don’t know if I will have the time. The perfect storm has arrived and I hope you stick around to ride it out.


Merry Christmas and Happy New Year.

This past week I was reading a paper about the ZeroAccess Trojan when a section about a clever data hiding technique caught my eye. The paper was Sophos’s The ZeroAccess Botnet: Mining and Fraud for Massive Financial Gain and I’m referring to the Services.exe section which stated (on page 6):

"If installed on Windows Vista or higher ZeroAccess will attempt to patch the Windows file services.exe. A subroutine inside services.exe is overwritten with shellcode that is carried inside the ZeroAccess dropper.

A large amount of binary data is also written to the NTFS Extended Attributes of services.exe. Extended Attributes are a feature of NTFS similar in nature to Alternate Data Streams where extra information about the file can be stored on the file system. ZeroAccess uses this feature to hide a whole PE file as well as shellcode that loads the PE file. The overwritten subroutine in services.exe reads in all the data from the Extended Attributes and executes it. The shellcode then loads and executes the embedded PE file. This file is a DLL that has equivalent functionality to the main component, so the services.exe modifications provide a backup means for the bot to function if the two main components are discovered and removed."

I was already fascinated about the Trojan’s use of two separate DLLs to maintain persistence but what I read opened my eyes. ZeroAccess leveraged a third DLL for persistence that was hidden inside the NTFS Extended Attributes. A Google search lead me to a third article by Symantec - Trojan.Zeroaccess.C Hidden in NTFS EA. I then remembered a few months back someone from the Yahoo Win4n6 group posted the write-up ZeroAccess – From Rootkit to Nasty Infection – which also discussed ZeroAccess hiding data inside NTFS Extended Attribute. At the time, I read the HitmanPro article and bookmarked it amongst my malware references but I didn’t give it too much thought. Now my eyes are open and the use of the NTFS Extended Attribute had my full attention. A few thoughts were running through my head (yes in this order)

     1. This is a really cool technique

     2. The articles don’t mention how to extract the data from the Extended Attribute. I wonder how you can do it.

     3. Hiding data in the Extended Attribute is brilliant since antivirus software might not check there. Come to think about it most digital forensic tools don’t parse the data inside Extended Attributes either.

     4. Wait a second; I never look at the NTFS Extended Attributes during my examinations. I need to come up with a way to do it and add it to my examination process. It could be a check underneath my Malware Searches examination step.

     5. Alight, this is definitely cool.

In this post I’m providing answers to all the questions that were racing through my mind. The post is broken up into the sections:

     - What Are NTFS Extended Attributes

     - My Testing Environment

     - Extracting Data from NTFS Extended Attributes

     - Extracting ZeroAccess from NTFS Extended Attributes

     - Locating Other ZeroAccess Files on System

What Are NTFS Extended Attributes

The NTFS filesystem is the default for the Microsoft Windows server operating systems as well as Windows 2000, XP, Vista, and 7. The Master File Table ($MFT) is the component in NTFS containing information about all the files and folders on the volume. “Every file and directory has at least one entry in the table, and the entries by themselves are very simple.” The entry basically consists of a header and attributes. Two attributes are the $EA index and $EA_INFORMATION which are the NTFS Extended Attributes.

The File System Forensic Analysis book shows the $EA_INFORMATION type identifier as 208 and $EA identifier as 224 (credit goes to Harlan for this reference). The book further stated both attributes are “used for backward compatibility with OS/2 applications (HPFS).” In addition, the book Windows Internals, Part 2: Covering Windows Server 2008 R2 and Windows 7 stated “extended attributes are name/value pairs and aren’t normally used but are provided for backward compatibility with OS/2 applications”. The references provide a little more clarity about what the author of ZeroAccess is doing. They are using hardly used $MFT attributes meant for backward compatibility as a place to hide data. The cool factor with this technique went up a few notches.

Testing Environment

Before diving into the answers to all my questions I wanted to provide information about my testing environment. Knowing the testing environment makes it easier for others to see exactly what I did and how to replicate my testing. For those looking for the “good stuff” skip ahead to the section Extracting Data from NTFS Extended Attributes.

Finding the ZeroAccess Sample

In all the articles about ZeroAccess using the NTFS Extended Attributes I noticed one commonality; this technique was used in an updated version of the Trojan. Check out the commonality: HitmanPro posted their write up on June 25, 2012, Symantec did theirs on August 14, 2012, and Sophos report was released in September 2012. Furthermore, Sophos stated in their opening sentence “since our last paper on ZeroAccess, The ZeroAccess Rootkit, its authors have made significant changes.” The point was crystal clear, I needed to find a recent ZeroAccess sample in order to find one leveraging the $EA hiding technique.

I searched for samples in the Virus Share malware repository as you will see why shortly. A generic search for “zeroaccess” wasn’t to helpful since it resulted in 6,056 results. I needed a more focused search so I turned to Symantec’s detection Trojan.ZeroAccess.C. It reduced my search results to 9 samples.

A nice feature about Virus-Share is it provides links to each sample’s VirusTotal’s report. I used the VT report to further narrow down my samples. On VirusTotal’s Additional Information section, I first looked to see when each sample was first seen.


Remember the commonality with the articles? I only wanted to focus on samples first seen within the past few months. The second check I did on the Additional Information section was to look at the TrID output to determine what samples were executables as opposed to DLLs. Working with an exe makes it a little easier for fast execution.


I narrowed my samples down to five based on the above checks. Not every ZeroAccess Trojan will modify the services.exe and store binary data in the NTFS Extended Attribute. So I started executing one sample after another to see if any modified the services.exe MFT record. I didn’t do any dynamic analysis; I pretty much just ran a sample and then looked at the services.exe MFT record to see if the Extended Attributes were added. On the third sample I hit pay dirt. The sample MD5 hash b437274492e215c25f96711d04b44050 (SHA256 658817f5f7722506868d9f717ee19b276fcab0d0ecac071d5d92a4178fdeb5b3) leveraged the NTFS Extended Attributes.

Side note: I mentioned in the Win4n6 group I was looking for ZeroAccess samples that used the NTFS Extended Attributes. Stefan replied with not only the MD5 hash c6e73a75284507a41da8bef0db342400 but links to the article ZeroAccess - new steps in evolution and the ThreatExpert Report. This sample is the next one I’m going to check out.

Configuring my Test System

The Sophos report indicated the services.exe is only patched if ZeroAccess is installed on a system with Windows Vista or higher. I selected for my test system Windows 7 Ultimate 32 bit which I was running inside VMware. I used a fresh install and the only configuration change I made was to disable the User Account Control. I wanted to avoid making ZeroAccess elevate its privileges. I also installed the program Capture.bat as a quick way to see changes made to the file system.

Extracting Data from NTFS Extended Attributes

I had to answer my first question before I could go forward with any testing. How do I extract the binary data from the NTFS Extended Attributes? I reached out to the Win4n6 group for suggestions and Brian Carrier pointed me to the promise land. He suggested I used the Sleuthkit; specifically istat to see what attributes a MFT record has and icat to dump the data in an attribute. The process needed to extract data stored inside NTFS Extended Attributes with TSK is as follows:

Note: the TSK tools can be ran against a forensic image or a mounted drive. My examples throughout the post are against a mounted drive (\\.\PHYSICALDRIVE#) but the path to a forensic image could be used instead.

1. Identify the starting sector of the partition where services.exe is located. Typically, the first sector for Vista and 7 is 2048 (XP is 63). The TSK tool to use is mmls and the command is:

mmls \\.\PHYSICALDRIVE#


2. Identify the inode number for the C:\Windows\System32\services.exe file. The TSK tool to use is ifind and the command is:

ifind -o 2048 -n "Windows/System32/services.exe" \\.\PHYSICALDRIVE#

Command explanation: the –o switch is to specify the sector offset that was discovered with mmls and the –n switch is the file name to get the inode for.


3. Review the attributes associated with the MFT record for C:\Windows\System32\services.exe. The TSK tool to use is istat and the command is:

istat -o 2048 \\.\PHYSICALDRIVE3 12345

Command explanation: the –o switch is the sector offset and the 12345 is the place where the inode number goes. The attributes of interest are $EA_INFORMATION (208) and $EA (224).


4. If present, make note of the NTFS Extended Attributes. In istat’s output, next to the attribute name will be a value inside parentheses. i.e. the value in my test appeared as $EA (224-4)


5. Dump the contents from the $EA and $EA_INFORMATION and redirect it to a file. The TSK tool to use is icat and the commands are:

icat -o 2048 \\.\PHYSICALDRIVE# 12345-208-# > EA_INFO.txt
icat -o 2048 \\.\PHYSICALDRIVE# 12345-224-# > EA.txt

Command explanation: the –o switch is the sector offset and the number at the end is the inode number with the attribute value added. The 208-# dumps $EA_INFORMATION and 224-# dumps $EA.

The above process can be used to either read a MFT’s record attributes or dump the data stored in those attributes.

Extracting ZeroAccess from NTFS Extended Attributes

To completely answer my first question about how to extract the ZeroAccess Trojan from NTFS Extended Attributes I actually had to do it. This is what I ended up doing:

     - Determined what a clean MFT services record looks like
     - Located an infected MFT services record
     - Extracted ZeroAccess from the MFT services record
     - Created the ZeroAccess binary

What Does a Clean MFT Services.exe Record Look like?

It’s always good to know what normal looks like so it’s easier to see what is abnormal. This was my thinking and why I first looked at a clean MFT services.exe record. Here’s what I did and what it looked like. I highlighted in blue values of interest.

1. Confirmed the starting sector for the partition.

mmls \\.\PHYSICALDRIVE2


DOS Partition Table
Offset Sector: 0
Units are in 512-byte sectors

Slot Start End Length Description
00: Meta 0000000000 0000000000 0000000001 Primary Table (#0)
01: ----- 0000000000 0000002047 0000002048 Unallocated
02: 00:00 0000002048 0020969471 0020967424 NTFS (0x07)
03: ----- 0020969472 0020971519 0000002048 Unallocated


2. Identified the inode number for the C:\Windows\System32\services.exe file.

ifind -o 2048 -n "Windows/System32/services.exe" \\.\PHYSICALDRIVE2

19211


3. Reviewed the attributes associated with the C:\Windows\System32\services.exe MFT record. Notice there are no $EA or $EA_INFORMATION attributes listed under the Attributes section.

istat -o 2048 \\.\PHYSICALDRIVE2 19211

MFT Record Header Values:
Record: 19211 Sequence: 1
$LogFile Sequence Number: 34894400
Allocated File
Links: 2

$STANDARD_INFORMATION Attribute Values:
Flags: Archive
Owner ID: 0
Security ID: 450 ()
Created: 2009-07-13 19:11:26 (Eastern Daylight Time)
File Modified: 2009-07-13 21:14:36 (Eastern Daylight Time)
MFT Modified: 2012-12-06 11:54:31 (Eastern Standard Time)
Accessed: 2009-07-13 19:11:26 (Eastern Daylight Time)

$FILE_NAME Attribute Values:
Flags: Archive
Name: services.exe, services.exe
Parent MFT Record: 7150 Sequence: 1
Allocated Size: 0 Actual Size: 0
Created: 2012-12-06 11:54:31 (Eastern Standard Time)
File Modified: 2012-12-06 11:54:31 (Eastern Standard Time)
MFT Modified: 2012-12-06 11:54:31 (Eastern Standard Time)
Accessed: 2012-12-06 11:54:31 (Eastern Standard Time)

Attributes:
Type: $STANDARD_INFORMATION (16-0) Name: N/A Resident size: 72
Type: $FILE_NAME (48-4) Name: N/A Resident size: 90
Type: $FILE_NAME (48-2) Name: N/A Resident size: 90
Type: $DATA (128-3) Name: N/A Non-Resident size: 259072 init_size: 259072
750372 750373 750374 750375 750376 750377 750378 750379
750380 750381 750382 750383 750384 750385 750386 750387
750388 750389 750390 750391 750392 750393 750394 750395
750396 750397 750398 750399 750400 750401 750402 750403
750404 750405 750406 750407 750408 750409 750410 750411
750412 750413 750414 750415 750416 750417 750418 750419
750420 750421 750422 750423 750424 750425 750426 750427
750428 750429 750430 750431 750432 750433 750434 750435

Located an Infected MFT Services.exe Record

The clean C:\Windows\System32\services.exe file only had four attributes listed. The $STANDARD_INFORMATION (16-0), $FILE_NAME (48-4), $FILE_NAME (48-2), and $DATA (128-3) attributes. Here’s what an infected services.exe MFT record looks like and what I did. I highlighted in blue values of interest and items related to the infection in red.

1. Confirmed the starting sector for the partition.

mmls \\.\PHYSICALDRIVE2


DOS Partition Table
Offset Sector: 0
Units are in 512-byte sectors

Slot Start End Length Description
00: Meta 0000000000 0000000000 0000000001 Primary Table (#0)
01: ----- 0000000000 0000002047 0000002048 Unallocated
02: 00:00 0000002048 0020969471 0020967424 NTFS (0x07)
03: ----- 0020969472 0020971519 0000002048 Unallocated


2. Identified the inode number for the C:\Windows\System32\services.exe file.

ifind -o 2048 -n "Windows/System32/services.exe" \\.\PHYSICALDRIVE2


42756


3. Reviewed the attributes associated with the C:\Windows\System32\services.exe MFT record.

istat -o 2048 \\.\PHYSICALDRIVE2 42756


MFT Record Header Values:
Record: 42756 Sequence: 1
$LogFile Sequence Number: 98696063
Allocated File
Links: 1

$STANDARD_INFORMATION Attribute Values:
Flags: Archive
Owner ID: 0
Security ID: 483 ()
Last User Journal Update Sequence Number: 17321736
Created: 2009-07-13 19:11:26 (Eastern Daylight Time)
File Modified: 2009-07-13 21:14:36 (Eastern Daylight Time)
MFT Modified: 2012-12-06 17:18:05 (Eastern Standard Time)
Accessed: 2009-07-13 19:11:26 (Eastern Daylight Time)

$FILE_NAME Attribute Values:
Flags: Archive
Name: services.exe
Parent MFT Record: 1802 Sequence: 1
Allocated Size: 0 Actual Size: 0
Created: 2009-07-13 19:11:26 (Eastern Daylight Time)
File Modified: 2012-12-06 17:18:05 (Eastern Standard Time)
MFT Modified: 2012-12-06 17:18:05 (Eastern Standard Time)
Accessed: 2012-12-06 17:18:05 (Eastern Standard Time)

Attributes:
Type: $STANDARD_INFORMATION (16-0) Name: N/A Resident size: 72
Type: $FILE_NAME (48-2) Name: N/A Resident size: 90
Type: $DATA (128-5) Name: N/A Non-Resident size: 259072 init_size: 259072
618 619 620 621 622 623 624 625
626 627 628 629 630 631 632 633
634 635 636 637 638 639 640 641
642 643 644 645 646 647 648 649
650 651 652 653 654 655 656 657
658 659 660 661 662 663 664 665
666 667 668 669 670 671 672 673
674 675 676 677 678 679 680 681
Type: $EA_INFORMATION (208-3) Name: N/A Resident size: 8
Type: $EA (224-4) Name: N/A Non-Resident size: 23404 init_size: 23404
346 347 348 349 350 351

Extract ZeroAccess from MFT Services Record

The infected MFT services.exe record had a few different changes. The inode number for C:\Windows\System32\services.exe changed from 19211 to 42756. In addition, the attributes now listed the NTFS Extended Attributes: $EA_INFORMATION (208-3) and $EA (224-4). The ZeroAccess binary data can now be extracted using the attribute values shown with istat. Here’s how I extracted the data.

4. Extracted the binary data from the MFT record for C:\Windows\System32\services.exe for both the $EA_INFORMATION and $EA attributes.

icat -o 2048 \\.\PHYSICALDRIVE2 42756-208-3> icat_services_$EA-INFORMATION.bin
icat -o 2048 \\.\PHYSICALDRIVE2 42756-224-4 > icat_services_$EA_binary.bin

Create the ZeroAccess Binary

The Sophos report indicated the ZeroAccess binary data stored in the NTFS Extended Attribute is shellcode and a DLL. This means I had to separate the two in the dumped data; my focus was only on the DLL. There was very little data stored in the $EA_INFORMATION attribute while the majority of the data – including the DLL – was in the $EA attribute. To rebuild the DLL I opened the extracted data in a Hex editor and looked for for a PE file’s characteristics. I was looking for the MZ file signature and the MS-DOS message.


I located the MZ signature at offset 1684 so I copied out the binary data from offset 1684 to the end of the file. The resulting file was SHA256 ee14dcd20b2ee118618e3a28db72cce92ccd9e85dd8410e02479d9d624934b13 which was detected as the ZeroAccess Trojan.

Locating Other ZeroAccess Files on System

Locating the infected services.exe file and extracting the binary data from the NTFS Extended Attributes only addresses one part of the infection. ZeroAccess drops other files on a system and I wanted to find these as well. However, I didn’t want to cheat by looking at my Capture.bat log file. I wanted to verify how a system timeline worked by using the services.exe as a starting point to find the other malicious files.

Timelines are my go to tool when I’m trying find files associated with an infection. A timeline can reveal other activity occurring on a system around a certain time of interest. In this case, I was interested in seeing the activity around the time when the services.exe file was last modified as shown below. (the timeline was created with AnalyzeMFT).




The timeline showed the services.exe file was modified on 12/06/12 at 18:05:09. The activity beforehand included the creation of files and folders in both the C:\Windows\Installer and C:\Users\Lab\AppData\Local folders. The file named n in both locations is the ZeroAcess Trojan.

Summary

Storing data inside the NTFS Extended Attributes is a clever way to hide data. Based on the reports I read, ZeroAccess started to use this technique within the last year. So far it appears as if this is not a commonly used technique to hide data among malware. The only reports I could find only talked about ZeroAccess. However, in time I would not be surprised to see other malware families trying to use NTFS Extended Attributes. To see why just think about these two questions: how many tools are checking the NTFS Extended Attributes for every file and how many DFIR practitioners and IT staff are actually aware that malware can be hidden there? If I was a betting man I’d put my money on both answers being “very few”. My eyes are opened to this hiding technique and I added a check underneath my Malware Searches examination step to account for it. If I ever need to determine if something is leveraging NTFS Extended Attributes then this is the process I will use.

1. Parse the MFT so that NTFS Extended Attributes are shown for every file. One tool to use is AnalyzeMFT with the command

analyzeMFT.py -f $MFT -o parsed_mft.txt


Import analyzeMFT’s output into Excel or Calc (output is comma delimited format). Apply a sort on the $EA attribute being true to show every file with a NTFS Extended Attribute.


2. Locate the files’ of interest MFT records. AnalyzeMFT’s output contains this information.

3. Identify the partition’s starting sector. One tool to use is TSK’s mmls with the command:

mmls \\.\PHYSICALDRIVE#

4. Review the attributes associated with any files of interest. One tool to use is TSK’s istat with the command

istat -o 2048 \\.\PHYSICALDRIVE3 12345

5. Make note of the NTFS Extended Attributes $EA_INFORMATION and $EA. In istat’s output, next to the attribute name will be a value inside parentheses.

6. Dump the data from the $EA and $EA_INFORMATION for closer inspection. Use TSK’s icat with the commands:

icat -o 2048 \\.\PHYSICALDRIVE# 12345-208-# > EA_INFO.txt
icat -o 2048 \\.\PHYSICALDRIVE# 12345-224-# > EA.txt


Happy Hunting

Knowing the programs that executed on a system can answer numerous questions. The answers can help on a range of cases from acceptable use policy violations to investigations to intrusions to malware. One program execution artifact is prefetch files which have been well documented including in the article Decoding Prefetch Files for Forensic Purposes and on the Prefetch Wiki page. The purpose of this post is to explore the NTOSBOOT prefetch file and how it is relevant for malware investigations.

What is the NTOSBOOT Prefetch File

The Windows operating system enables prefetching to make system boots or applications startups faster. Windows Internals, Part 2: Covering Windows 2008 Server R2 and Windows 7 states “the prefetcher tries to speed the boot process and application startup by monitoring the data and code accessed by boot and application startups and using that information at the beginning of a subsequent boot or application startup to read in the code and data”. Prefetch files are what store the information required for faster startups.

The NTOSBOOT prefetch file stores the information related to the boot process. The information in this prefetch file reflects the files accessed during system startup. Specifically, the files accessed, according to the Windows Internals, “from system start through the 30 seconds following the start of the user’s shell (typically Explorer) or, failing that, up through 60 seconds following Windows service initialization or through 120 seconds, whichever comes first”.

Relevance for Malware Investigations

The NTOSBOOT prefetch file stores information about the files accessed during the boot process and in some cases 30 seconds following a user logging onto a system. Remember the Rootkit Paradox, malware wants to hide but it must run. If a piece of malware runs during the boot process then there will be a reference for the malware in the NTOSBOOT prefetch file. To illustrate this point I examined a NTOSBOOT prefetch file to show how it contains traces of malware execution. (side note: to view the file handles in prefetch files one could use Strings or Harlan’s pref.pl)

The NTOSBOOT prefetch file in question came from a system I infected last year by opening the attachment in a NYS Department of Motor Vehicles Uniform Traffic Ticket email. Looking through the file handles for any unusual file paths (files in temporary folders, unusual file names, etc) I came across three suspicious files as shown below.

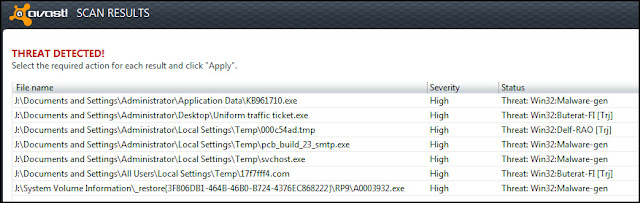

The first file 17F7FFF4.COM was suspicious since the file was located in the All Users temporary folder. The second file KB961710.exe was suspicious because Windows updates are not stored in the application data folders. The last file SVCHOST.EXE was suspicious since not only was it located in a temp folder but the svchost.exe file is normally located in the Windows\System32 folder. I located these files by solely reviewing the file handles referenced in the NTOSBOOT prefetch file and the screenshot below confirms my suspicions.

Summary

Program execution artifacts are vital when examining a system infected with malware. Despite malware’s best efforts to hide on a system at some point for them to do their jobs they have to run. When malware eventual runs there will be traces of its execution left on a system which can be used to find its hiding spot. The NTOSBOOT prefetch file is one such artifact and the file handle information will reveal what’s hiding on a system.

Jesse Kornblum’s paper “Exploiting the Rootkit Paradox with Windows Memory Analysis” explains the predicament Rootkits find themselves in. The predicament is:

        1. They want to remain hidden.

        2. They need to run.

Jesse’s paper goes into detail about this paradox so I won’t. The main point is Rootkits want to remain hidden on a system but they need to run on an operating system. If an operating system can find the Rootkit then so can an examiner. The paradox applies to all kinds of malware from data stealers to remote access Trojans to droppers.

I’ve been thinking about the Rootkit Paradox and there is another aspect to it that is important for examiners to understand. The second predicament is:

        1. They need to run.

        2. They want to remain hidden

In this case the “they” in the need to run is a piece of malware while the “they” in the want to remain hidden are Rootkits. Basically, a program needs to run in order to hide a Rootkit on a system. The program could be the Rootkit itself or a different piece of malware such as a dropper or installer. When a program runs on the system it creates artifacts showing it executed. An examiner could then look at those artifacts along with changes made to the file system (files/folders creations and modifications) to determine where the Rootkit or its components are hiding. Again this predicament applies to all kinds of malware.

The Rootkit Paradox is alive and well, and can be leveraged to find malware hiding on a system.
